Friday, 31 January 2014

dll reference missing or XML namespace error–when using TFS

I don’t have a proper title for this blog post. But hopefully it helps someone when they google it.
When you use TFS for your development you may get weird compile errors where c# code can not be referenced. Namespace error.
Or visual studio projects won’t open because of XML namespace issue.
below is the error you get if you are trying to Edit a visual studio analysis project from the AOT.

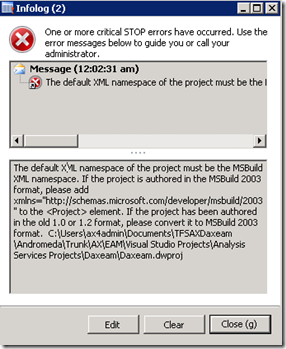

2014-01-31_1504
The default XML namespace of the project must be the MSBuild XML namespace. If the project is authored in the MSBuild 2003 format, please add xmlns="http://schemas.microsoft.com/developer/msbuild/2003" to the <Project> element. If the project has been authored in the old 1.0 or 1.2 format, please convert it to MSBuild 2003 format.  C:\Users\munib\Documents\TFSAXDaxeam\Andromeda\Trunk\AX\EAM\Visual Studio Projects\Analysis Services Projects\Daxeam\Daxeam.dwproj
I did some digging around and found that the ProjectTypeGUID is blank. A GUID is not assigned to it.

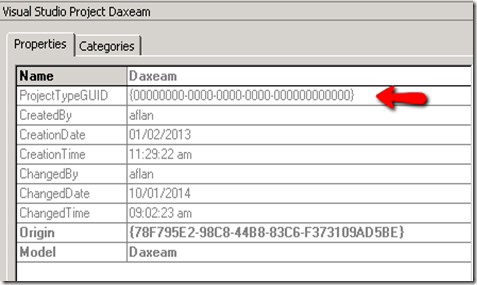

2014-01-31_1510
Each of the visual studio AOT elements is assigned a GUID depending on what type it is.
With some of the visual studio elements, like c# projects. You can export the xpo, set the property in notepad and then import it.
Some like the Visual Studio Analysis Projects, you wont be able to import the xpo. This just errors out.
So, I wrote a job for this.

static void setAOTPropertyWithOutValidation(Args _args)
{
    #AOT
    #Properties
    TreeNode    treeNode;   treeNode = TreeNode::findNode(#VSProjectsAnalysisPath + '\\' + 'Daxeam');   if (treeNode)
    {
        treeNode.AOTsetProperties('PROPERTIES\n ' + #PropertyProjectTypeGUID + '  #' +
                        '{D2ABAB84-BF74-430A-B69E-9DC6D40DDA17}' + '\n ENDPROPERTIES\n');
        treeNode.AOTsave();
    }
}


Final result should be like so. Then all should be fine from here.

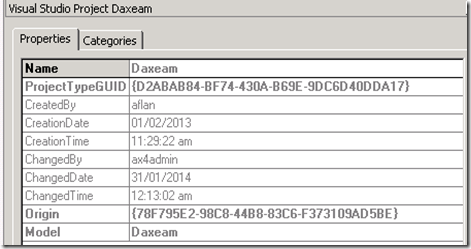

2014-01-31_1513


Updated:
I got a Microsoft KB - not a general release. You have to request it.
KB2926352/6.2.1000.5979

3 comments:

Gio said...

Hi Munib,
I read your message. is that KB above a hotfix?
Does it fix the build error of XML namespace...?
Are you able to Edit the SSAS project in VS after that error is gone?

Please let me know. Thanks

Munib Ahmed said...

Hi Gio,

The KB is a hotfix.
Yes it does address the issue described.

Gio said...

Thanks Munib. I will talk to MS.
