Step by Step: Deploy AX 2012 R3 on Azure via Life Cycle Service

AX 2012 R3 is finally here. With that they have made the demo environment available on Azure and can be deployed using Life Cycle Service.

There are a few posts out there detailing but I thought I do a quick screenshot step by step guide on how to deploy AX 2013 R3 on Azure via Life Cycle Service.

http://blogs.msdn.com/b/axinthefield/archive/2014/05/01/setting-dynamics-ax-2012-r3-demo-with-lcs-and-azure.aspx

http://technet.microsoft.com/en-us/library/dn741581.aspx

1. Log on to LCS and create

2. Create a new project and fill in the required details.

02-R3 New Project

3. Once the project is created click on the “Cloud hosted environment” icon.

03-R3 ProjectMain

4. Now go to Azure portal and grab your subscription ID. You will need it for the next step. It is a GUID.

04-AzureSubscription

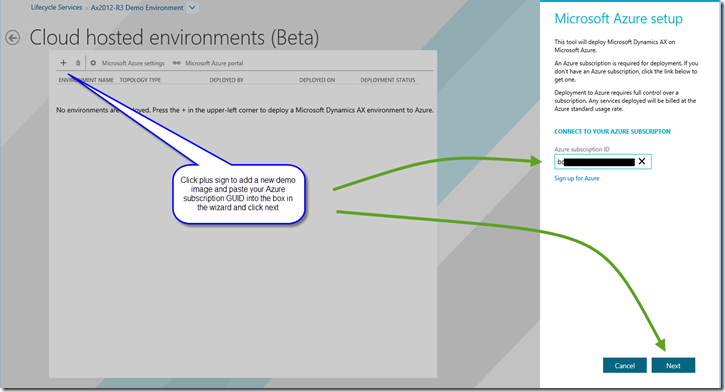

5. Back in LCS portal – you click the add button. You will need your Azure Subscription GUID.

05-AzureConnection

6. Now it will give you a certificate to download.

07-AzureDownloadsaveCert

8. In Azure portal click on Settings and upload the certificate.

08-AzureMgmtCert

09-AzureMgmtCertUpload

9. It should show up as loaded with the subscription id.

10-AzureMgmtCertUploadAdded

10. Now in LCS you can select where you want to host your server.

11-AzureAssignRegion

11. Follow the wizard and click on Deploy.

13-AzureDeplyDemo

12. Enter the name of your environment and click next.

14-AzureEnvirName

13. Click on Deploy.

15-Areyousure

14. It will come up with status of Deploying…

Give it a couple of hours or so.

16-DeployingStart9-35amEST

15. Status will come up as Deployed.

17-DeployingFinish10-40amEST

16. Go to Azure portal and now you should have an image with status of Running.

18-ImageDeployedinAzure

16. Just click on the connect button. It will download an mstc file you can jump into.

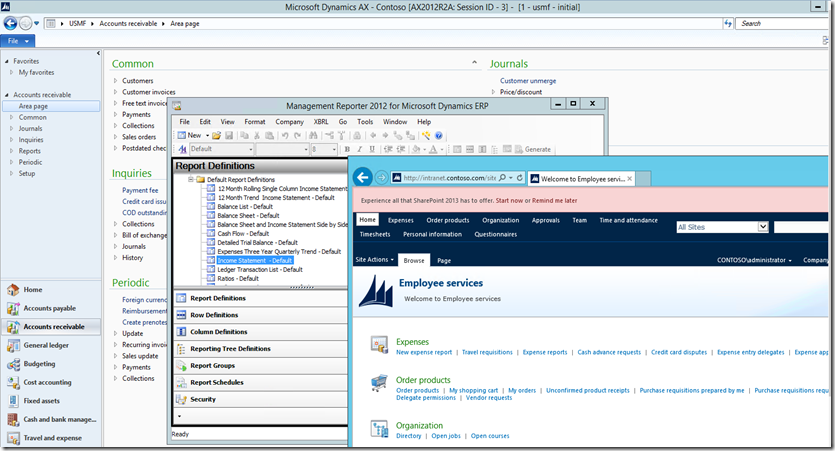

Server has everything you need deployed from AX, to Management reporter, EP etc.

19-LogintoImage

You can stop and configure it to allocate more resources but for me it ran pretty smooth for the work I was doing.

Enjoy.
