Part 1–Create an Azure IoT Hub and Device

This is not AX but this was a nice experience. I worked through some labs to interact with Azure IoT Hub.

There is a lot of information out there on the web. So, I will focus on the the IoT Hub only here. On later dates, I may get into the other features of the IoT services in Azure.

Below are the steps to create a device in IoT Hub to get you started. After you have created your device, you can interact with the device in multiple ways.

Go to Azure and Create a new IoT Hub App.

2016-10-29_12-20-27

Enter the required information.

2016-10-29_12-21-50

Now you can Add Devices manually through the Azure Portal. Otherwise, you can use the SDK to add the device via code.


Now, I will show how to add the device via C#. Create a new Console project.

Add the reference via NuGet.

2016-10-29_12-27-16

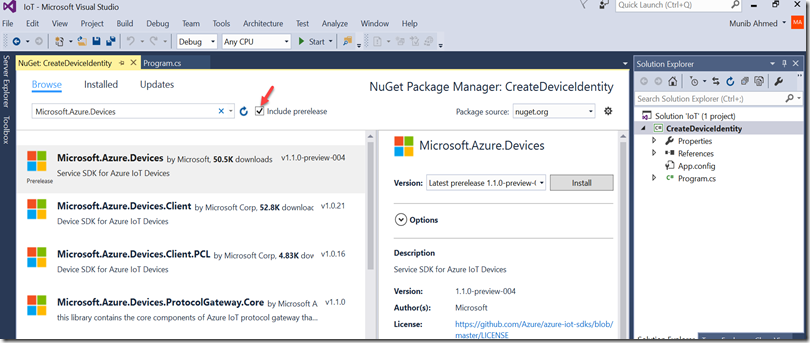

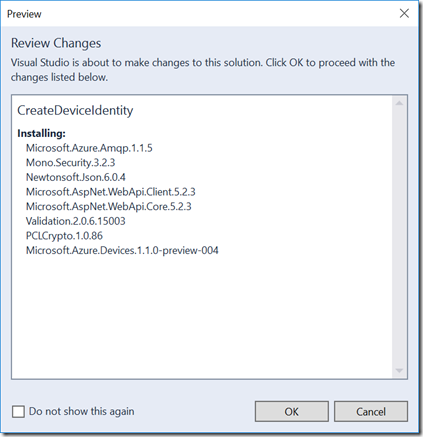

Search for Microsoft.Azure.Devices and Install it.

2016-10-29_12-26-59

2016-10-29_12-27-41

Below is the code to copy and paste. Make sure to change the connection string to point it to your IoT Hub.

 using System;
 using System.Collections.Generic;
 using System.Linq;
 using System.Text;
 using System.Threading.Tasks;
 using Microsoft.Azure.Devices;
 using Microsoft.Azure.Devices.Common.Exceptions;


 namespace CreateDeviceIdentity
 {
   class Program
   {
     static RegistryManager registryManager;
     static string connectionString = "HostName=DAXIOTHUB.azure-devices.net;SharedAccessKeyName=iothubowner;SharedAccessKey=xxxxxxxx";
     static void Main(string[] args)
     {
       registryManager = RegistryManager.CreateFromConnectionString(connectionString);
       AddDeviceAsync().Wait();
       Console.ReadLine();
     }
     private async static Task AddDeviceAsync()
     {
       string deviceId = "myFirstDevice";
       Device device;
       try
       {
         device = await registryManager.AddDeviceAsync(new Device(deviceId));
       }
       catch (DeviceAlreadyExistsException)
       {
         device = await registryManager.GetDeviceAsync(deviceId);
       }
       Console.WriteLine("Generated device key: {0}", device.Authentication.SymmetricKey.PrimaryKey);
     }
   }
 }

Credit to Microsoft for the Labs. Lab doc I found was a little old but most of the steps worked.

Reference:

https://azure.microsoft.com/en-us/documentation/articles/iot-hub-csharp-csharp-getstarted/
